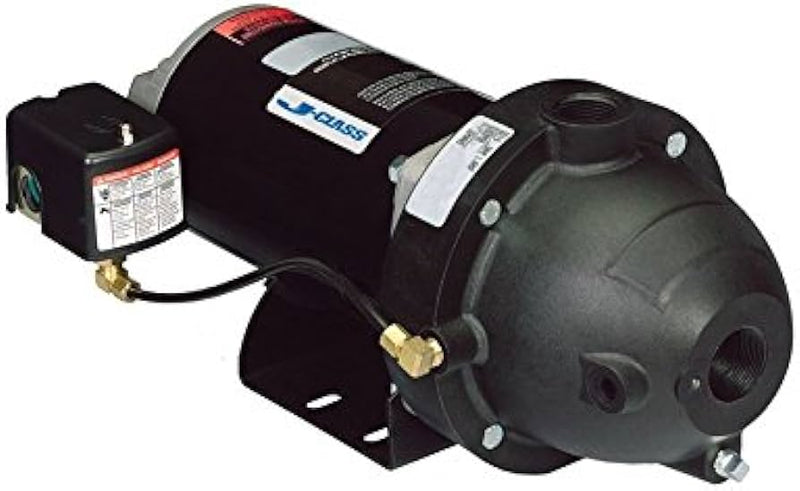

Franklin Electric 91090005, Model FSWJ05P Shallow Well Jet Pump

SKU 91090005

Key Features

Features:

  • Non-corrosive thermoplastic construction
  • Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
  • Self cleaning, anti-clogging injector screen
  • Thermoplastic impeller and diffuser ensure increased hydraulic performance
  • Floating stainless steel eye seal for maximum performance and efficiency
  • Square-flange mounting provides easy serviceability without disturbing the plumbing
  • Built-in drain plug for easy winterizing and servicing
  • Mechanical shaft seal allows positive protection against leaking
  • Order pressure gauge separately
  • Pressure switch is installed and set at 30/50 psi
  • Handles water temperatures up to 120 °F/49 °C and working pressure up to 75 psi
  • Connections:
  • 1-1/4" NPT suction
  • 1" NPT discharge

Request More Information

Franklin Electric 91090005, Model FSWJ05P, Non-corrosive Shallow Well Jet Pump, SWJ Series, 1/2 HP, 115/230 Volts, 1 Phase, 11.8/5.8 Amps, 1" NPT Discharge, Thermoplastic

Non-corrosive Shallow well jet pump

Non-corrosive thermoplastic construction allows the SWJ to be used in clean water installations without the fear of corrosion. The Self cleaning injector screen provides an additional level of anti clogging for those turbid environments.

Features:

  • Non-corrosive thermoplastic construction
  • Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
  • Self cleaning, anti-clogging injector screen
  • Thermoplastic impeller and diffuser ensure increased hydraulic performance
  • Floating stainless steel eye seal for maximum performance and efficiency
  • Square-flange mounting provides easy serviceability without disturbing the plumbing
  • Built-in drain plug for easy winterizing and servicing
  • Mechanical shaft seal allows positive protection against leaking
  • Order pressure gauge separately
  • Pressure switch is installed and set at 30/50 psi
  • Handles water temperatures up to 120 °F/49 °C and working pressure up to 75 psi
  • Connections:
  • 1-1/4" NPT suction
  • 1" NPT discharge

Brand: Franklin Electric

Mfg. Number: 91090005

Model: FSWJ05P

Pump Type: Non-corrosive Shallow Well Jet pump

Series: SWJ Series

Voltage: 115/230 Volts

Horsepower: 1/2 HP

Phase: 1 Phase

Discharge Size: 1" NPT Discharge

Body Material: Thermoplastic

Impeller Material: Thermoplastic

Max Ambient Temperature: 120°F/49°C

Maximum Head: 25'

Maximum Capacity: 62

Product Power Rating: 11.8/5.8 Amps
